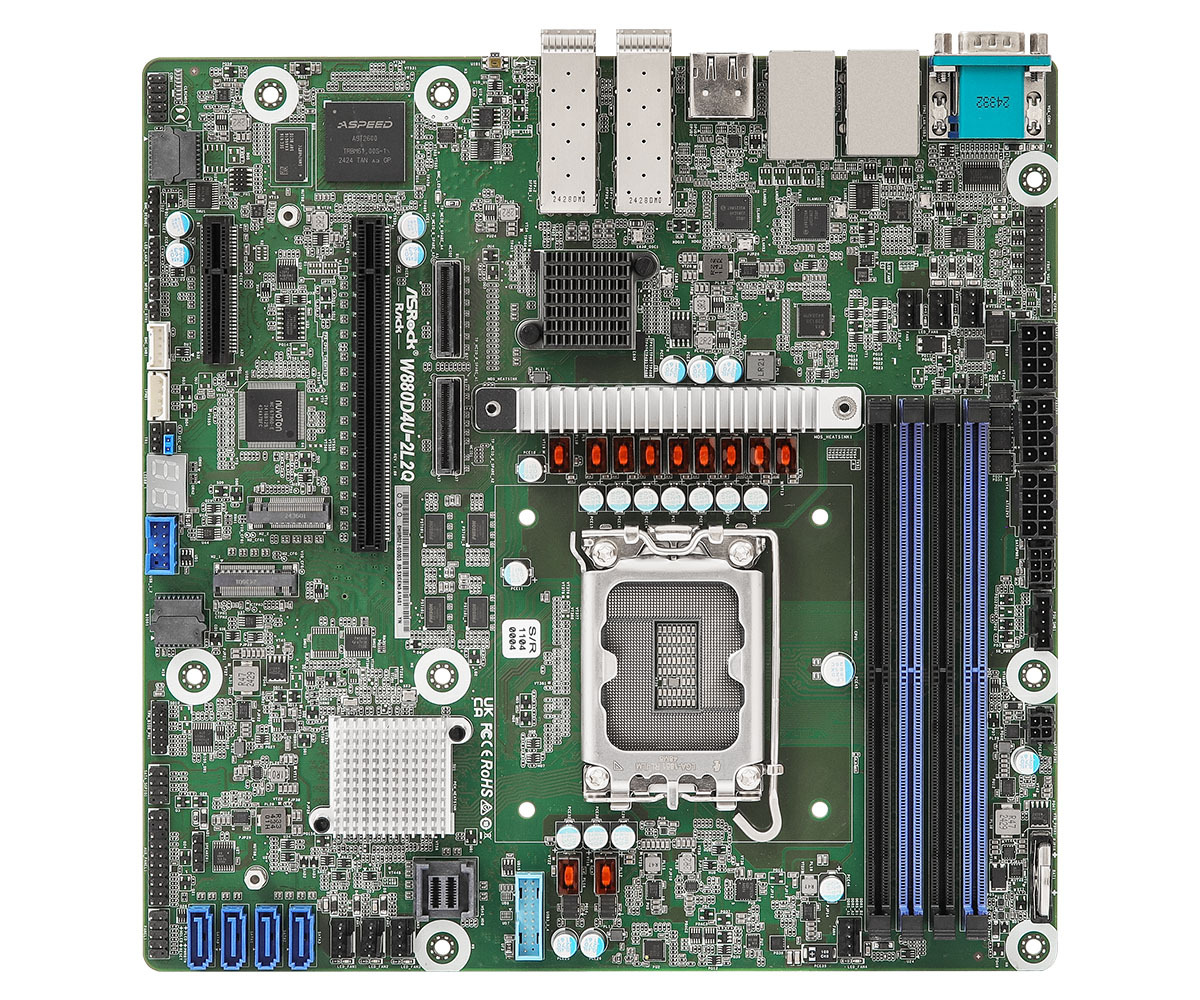

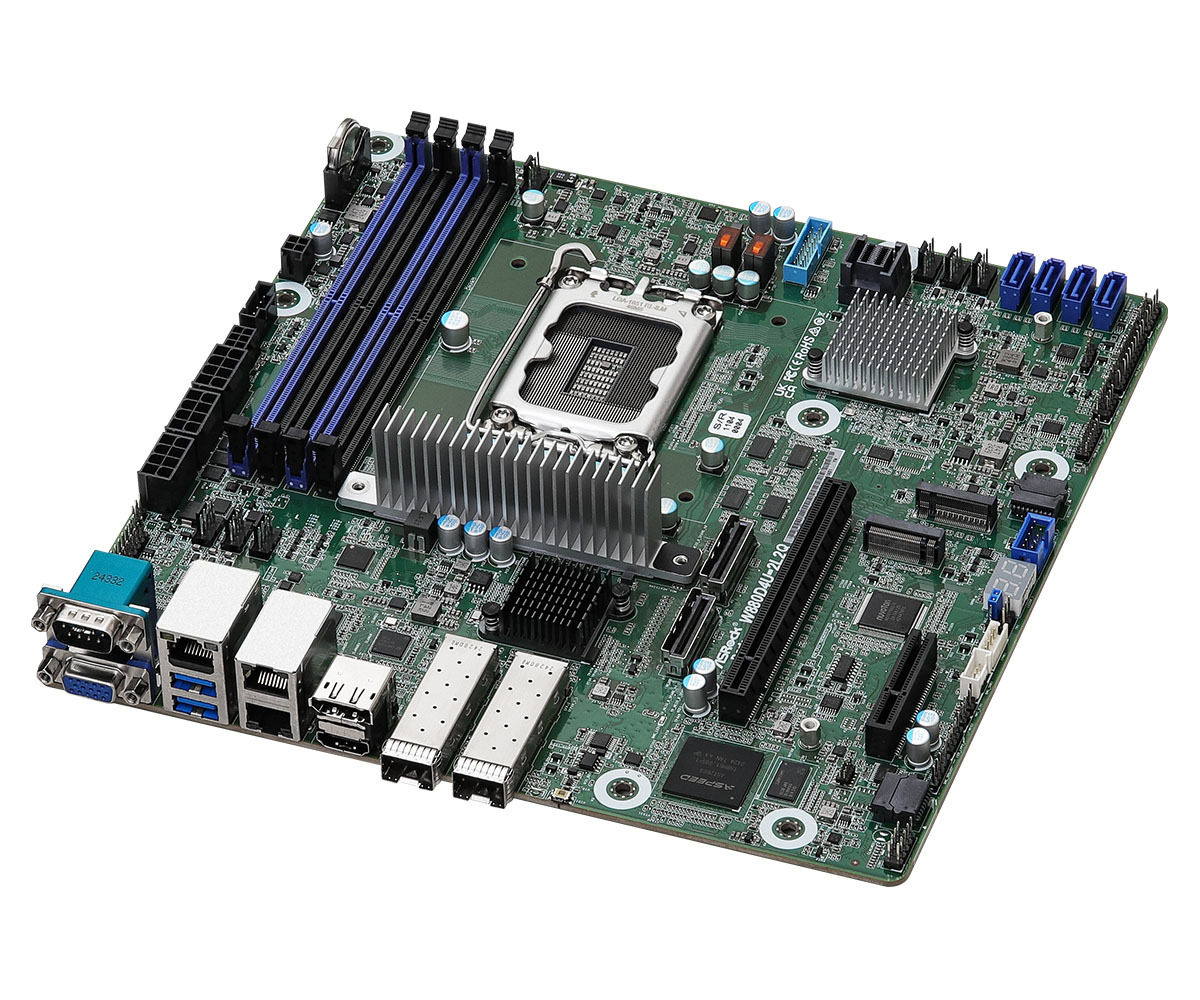

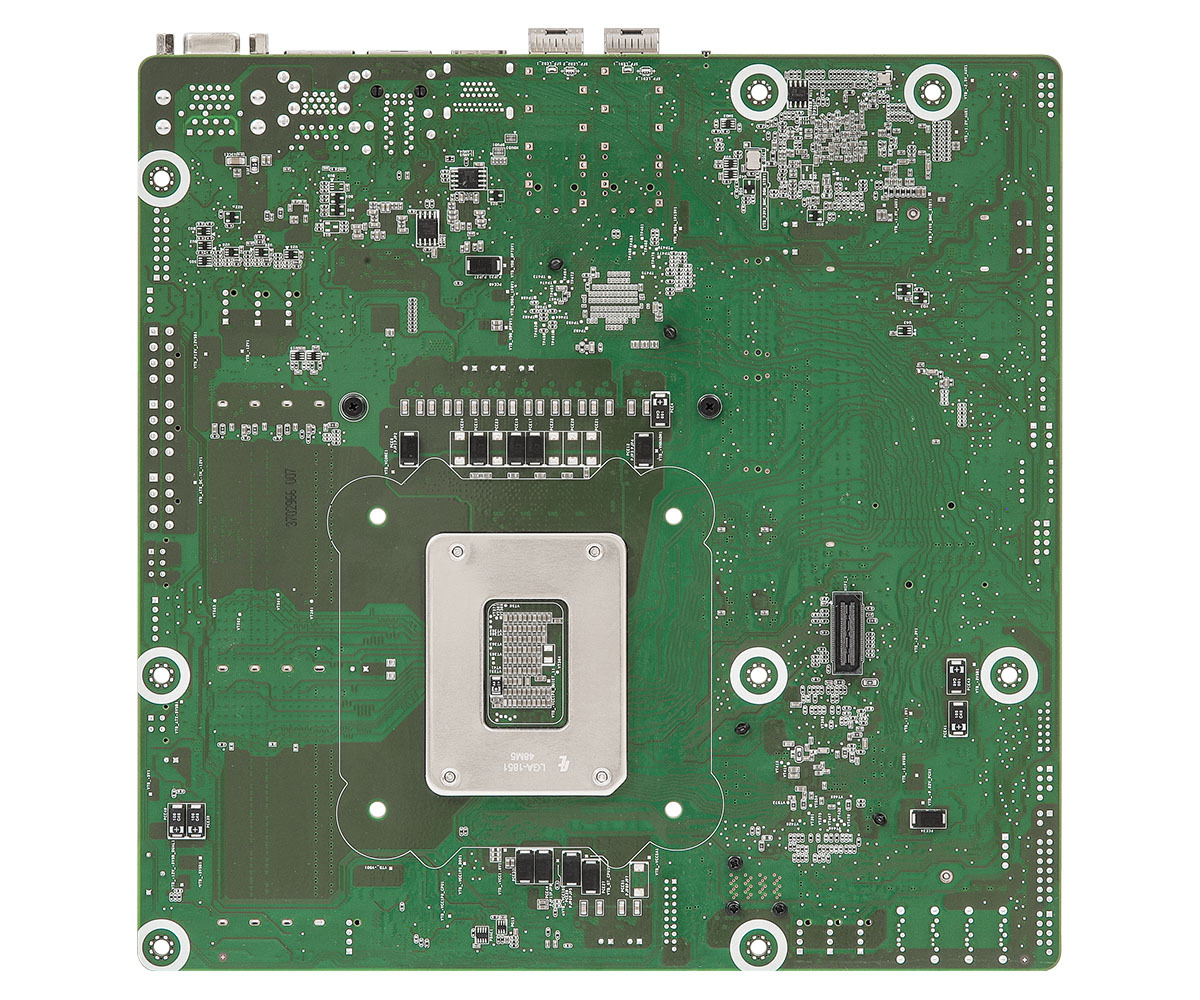

W880D4U-2L2Q

ModelW880D4U-2L2Q

Support ATX PSU or 12V DC-in

Micro-ATX (9.6" x 9.6")

Supports Intel? Core? Ultra Desktop Processors (Series 2)

4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM Memory

1 PCIe5.0 x16, 1 PCIe5.0 x4

Supports 2 M.2 (PCIe4.0 x4)

立即查詢

Specification

Physical Status
Form Factor Micro-ATX
Dimensions 9.6" x 9.6"
 Processor System
CPU Supports Intel® Core™ Ultra Desktop Processors (Series 2)
Socket Single Socket LGA 1851
Thermal Design Power 125W
Chipset Intel® W880
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 48GB
Max. DIMM Frequency max. 5600MHz (2DPC-1DIMM)
max. 4800MHz (2DPC-2DIMM 1R)
max. 4400MHz (2DPC-2DIMM 2R)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]*
*MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required.
PCIe x 4 SLOT4: PCIe5.0 x4 [CPU]
 TPM
TPM support 1 (13-pin, SPI)
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH]
Others MCIO1 (PCIe5.0 x8 or 2 PCIe5.0 x4)* [CPU]
MCIO2 (PCIe4.0 x4) [PCH]
 SATA/SAS Storage
PCH Built-in Storage Intel® W880 (8 SATA 6Gb/s; RAID 0/1/5/10):
4 SATA 7-pin, 1 Mini-SAS HD
 Ethernet
Additional GbE Controller 2 SFP28 (25GbE) by Intel® E830
2 RJ45 (1GbE) by Intel® i210
 Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA)
Intel® Integrated Processor Graphics:
1 HDMI, 1 DisplayPort

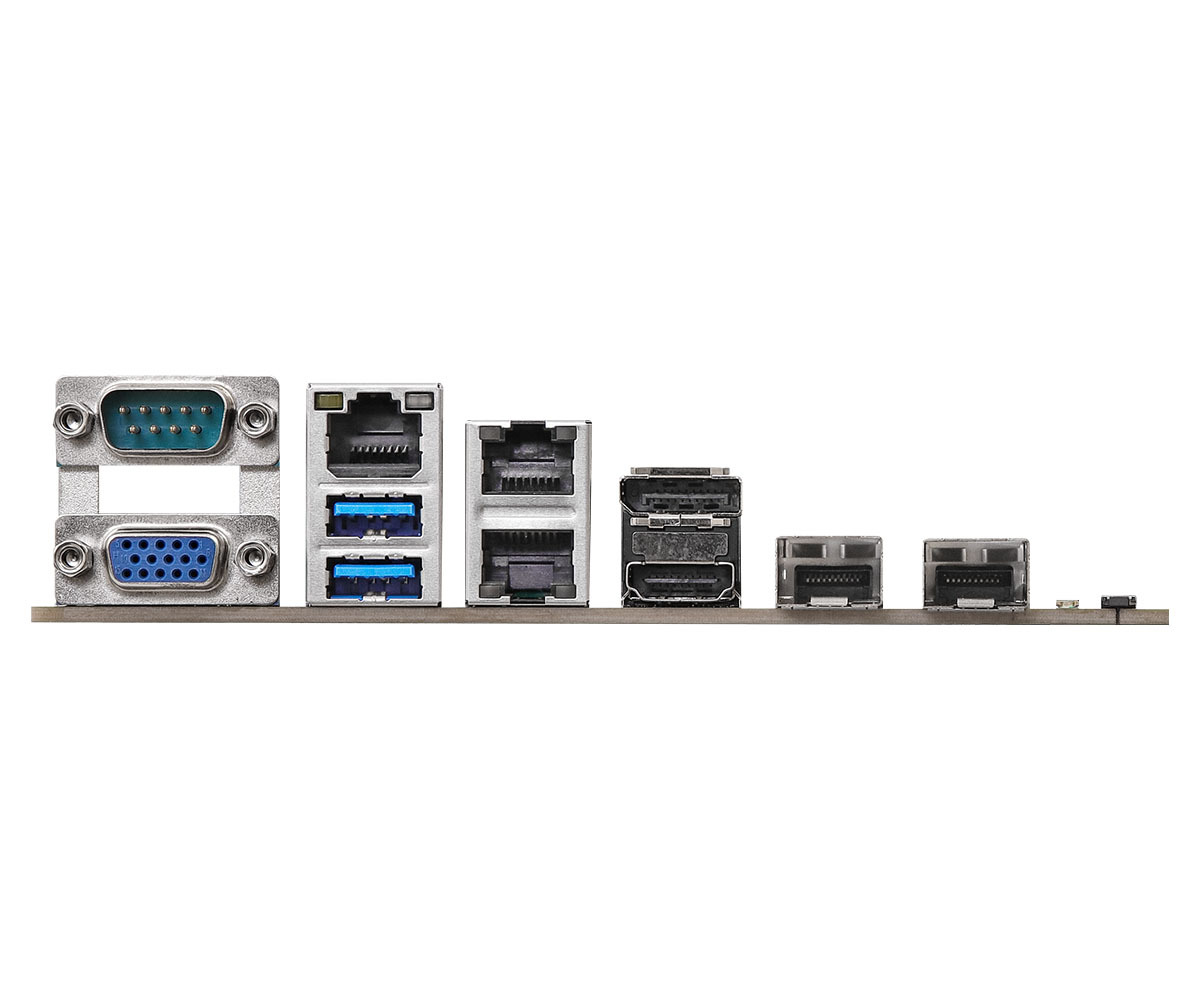

 Rear I/O
UID Button/LED 1 UID button, 1 UID LED
VGA Port 1 DB15 (VGA), 1 HDMI, 1 DisplayPort
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (1GbE), 1 dedicated IPMI
Other network connector 2 SFP28 (25GbE)
 Internal Connector/Headers
Power Connector 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors 1 (6-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1 (9-pin)
VGA header 1 (15-pin)
Speaker Header 1
Fan Header 7 (4-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
SGPIO Header 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (2-pin)
Front Lan LED Connector 1
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header 1 header (9-pin, 2 USB2.0)
NMI Header 1
 LED Indicators
Standby PWR LED 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 7
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI 256Mb SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, PCH, MB temp, Card side temp, TR1, VR, M.2 Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage VCORE, GT, VCCSA, VNNAON, VCCIO, 1.8V_CPU, VDD2, 0.82V_PCH, 1.8VSB, 3V, 5V, 12V, BAT, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



CPU Support List

1851 Core Ultra 5 Ultra 5-225F(B0) Arrow Lake-S 3.3GHz   20MB 1.16
1851 Core Ultra 9 Ultra 9-285K(B0) Arrow Lake-S 3.7GHz   36MB 1.16
1851 Core Ultra 9 Ultra 9-285(B0) Arrow Lake-S 2.5GHz   36MB 1.16
1851 Core Ultra 7 Ultra 7-265T(B0) Arrow Lake-S 1.5GHz   30MB 1.16
1851 Core Ultra 7 Ultra 7-265KF(B0) Arrow Lake-S 3.9GHz   30MB 1.16
1851 Core Ultra 7 Ultra 7-265K(B0) Arrow Lake-S 3.9GHz   30MB 1.16
1851 Core Ultra 7 Ultra 7-265F(B0) Arrow Lake-S 2.4GHz   30MB 1.16
1851 Core Ultra 7 Ultra 7-265(B0) Arrow Lake-S 2.4GHz   30MB 1.16
1851 Core Ultra 9 Ultra 9-285T(B0) Arrow Lake-S 1.4GHz   36MB 1.16
1851 Core Ultra 5 Ultra 5-245K(B0) Arrow Lake-S 4.2GHz   24MB 1.16
1851 Core Ultra 5 Ultra 5-230F(A0) Arrow Lake-S 3.4GHz   24MB 1.16
1851 Core Ultra 5 Ultra 5-225(B0) Arrow Lake-S 3.3GHz   20MB 1.16
1851 Core Ultra 5 Ultra 5-225(B0) Arrow Lake-S 3.3GHz   20MB 1.16
1851 Core Ultra 5 Ultra 5-245(B0) Arrow Lake-S 3.5GHz   24MB 1.16
1851 Core Ultra 5 Ultra 5-225F(B0) Arrow Lake-S 3.3GHz   20MB 1.16
1851 Core Ultra 5 Ultra 5-235(B0) Arrow Lake-S 3.4GHz   24MB 1.16
1851 Core Ultra 5 Ultra 5-225T(B0) Arrow Lake-S 2.5GHz   20MB 1.16
1851 Core Ultra 5 Ultra5-235T(B0) Arrow Lake-S 2.2GHz   24MB 1.16
1851 Core Ultra 5 Ultra 5-245T(B0) Arrow Lake-S 2.2GHz   24MB 1.16
1851 Core Ultra 5 Ultra 5-245KF(B0) Arrow Lake-S 4.2GHz   24MB 1.16



Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR5 6400 CUDIMM 16GB Crucial CT16G64C52CU5.M8D1 4JD45D8DKT Micron
DDR5 5600 non-ECC 48GB Hynix HMCGY8MGBUB213N H5CGD8MGB0 X021 Hynix
DDR5 5600 ECC 48GB Hynix HMCGY8MGBEB213N H5CG08MGBD X021 Hynix



HDD QVL

Type Size Vendor Capacity Model
U.2 2.5" Micron 30.72TB 9550 PRO-MTFDLAL30T7THA-1BK1DABYY
Model W880D4U-2L2Q
