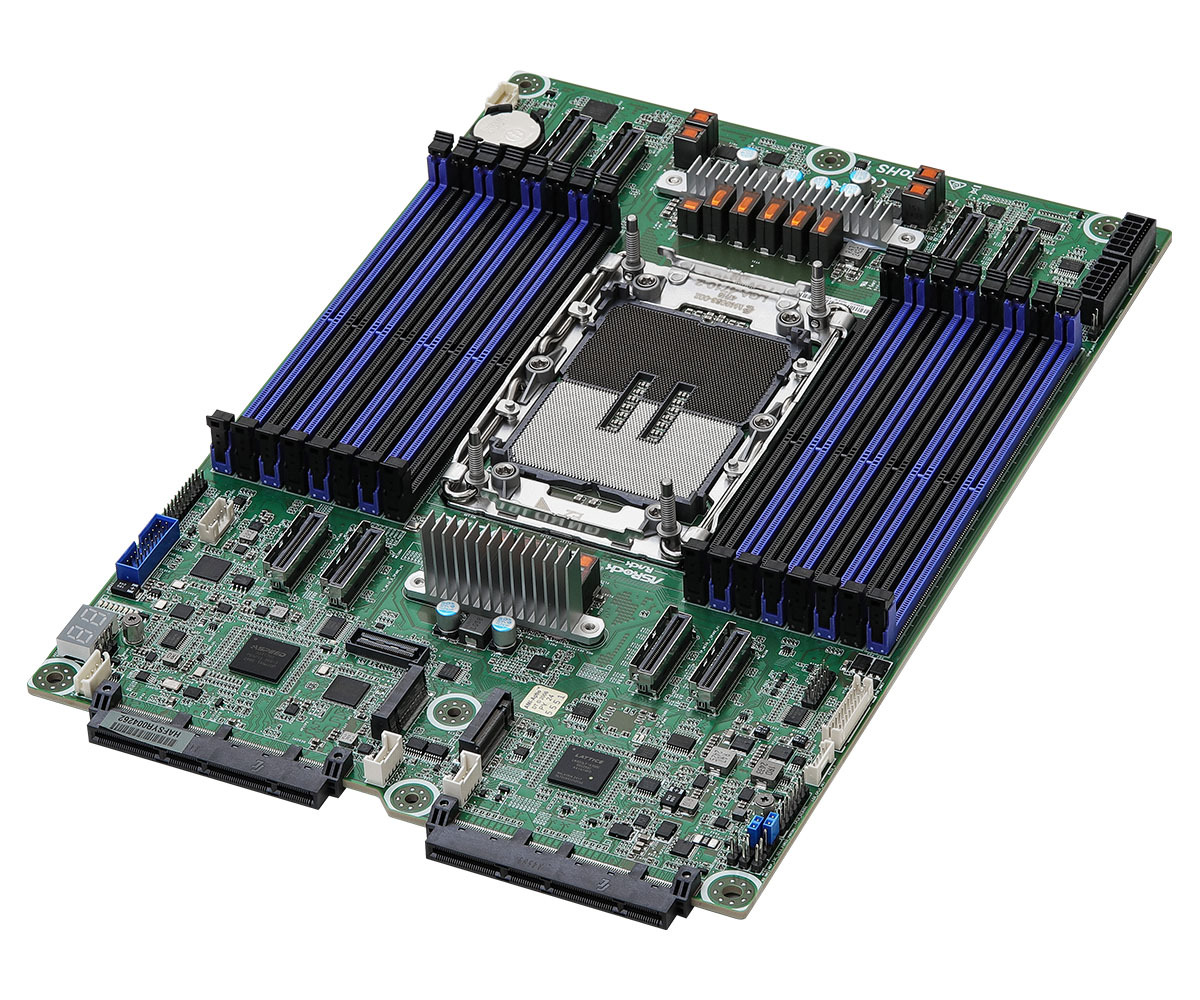

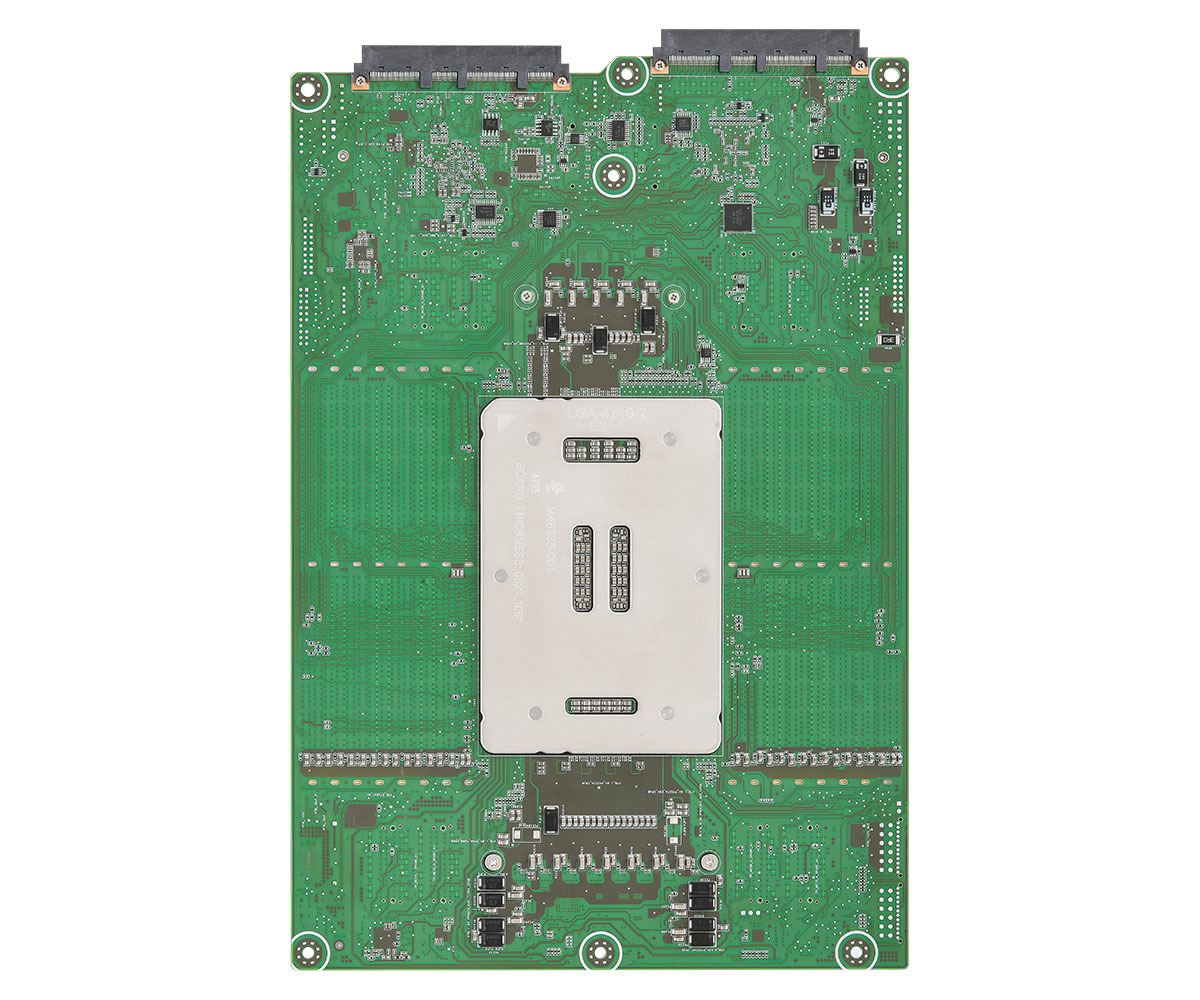

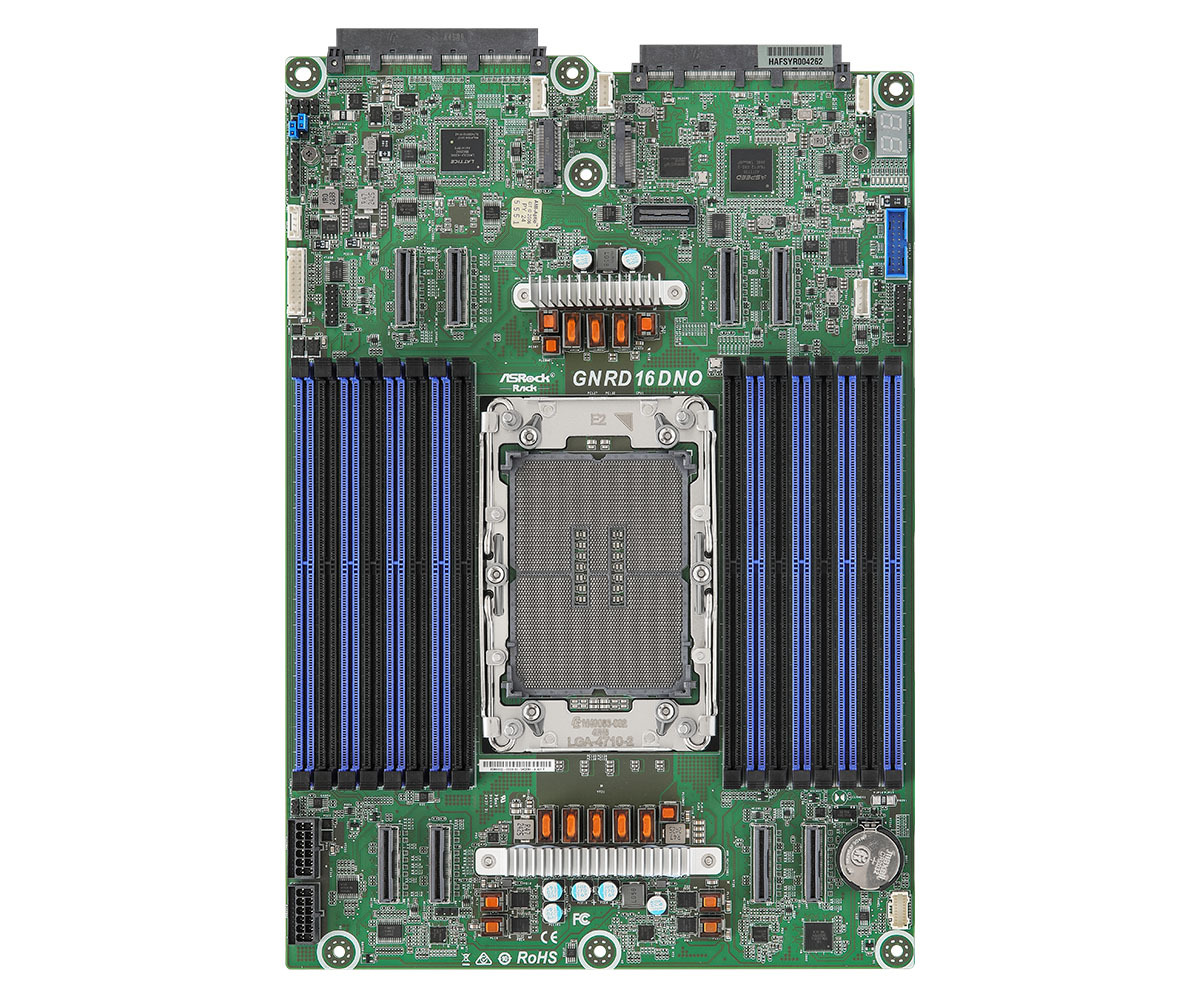

GNRD16DNO

ModelGNRD16DNO

M-DNO Type2 (210mm x 305.59mm; 8.27" x 12")

Supports Intel? Xeon? 6700P-series, 6500P-series, and 6700E-series processors

16 DIMM slots (2DPC), supports DDR5 RDIMM

8 MCIO (PCIe5.0 / CXL2.0 x8)

Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe5.0 x2)

立即查詢

Specification

Physical Status
Form Factor M-DNO Type 2
Dimensions 210mm x 305.59mm (8.27" x 12")
 Processor System
CPU Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors
Socket 1 Socket E2 (LGA 4710)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 16 DIMM slots (2DPC)
Supported Type DDR5 RDIMM
Max. Capacity per DIMM RDIMM: 128GB
Max. DIMM Frequency RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC)
Voltage 1.1V
 TPM
TPM support 1 (13-pin, SPI)
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4), supports 2280 form factor
1 M-key (PCIe5.0 x2), supports 2280 form factor
Others 8 MCIO (PCIe5.0 / CXL2.0 x8)
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 / CXL2.0 x16)
 Server Management
BMC Controller ASPEED AST2700 on DC-SCM 2.0 module (DC_SCM_2700)
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN on DC-SCM 2.0 module (DC_SCM_2700)
 Graphics
Controller ASPEED AST2700:
1 Mini DisplayPort (on DC_SCM_2700)
 Rear I/O
UID Button/LED 1 UID button/LED on DC_SCM 2.0 module (DC_SCM_2700)
VGA Port 1 Mini DisplayPort on DC_SCM 2.0 module (DC_SCM_2700)
Serial Port 1 Type-C (COM) on DC-SCM 2.0 module (DC_SCM_2700)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1) on DC-SCM 2.0 module (DC_SCM_2700)
RJ45 1 dedicated IPMI on DC-SCM 2.0 module (DC_SCM_2700)
 Internal Connector/Headers
Power Connector 2 12V PICPWR (24-pin, 12V 2X6+12 Sideband)
Auxiliary Panel Header 1 (19-pin): UID switch w/LED, power switch w/LED, SMbus, system fault LED, HDD activity LED
System Panel 1 (20-pin): Smbus, USB2, SPI, Sideband
TPM Header 1 (13-pin, SPI)
VROC header 1
HSBP 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Others 1 (PDB Management Connector)
NMI Header 1
 LED Indicators
Standby PWR LED 1 (3VSB)
80 Debug Port LED 1
BMC heartbeat LED 1 on DC-SCM 2.0 module (DC_SCM_2700)
Others LED 1 CPLD heartbeat LED
 System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage PVCCD0_HV_CPU0, PVCCD1_HV_CPU0, PVCCFA_EHV_FIVRA_CPU0, PVCCINF_CPU0, PVCCIN_CPU0, PVCCFA_EHV_CPU0, PVNN_TERM_CPU0, 3.3V, 5V, 12V, 1.8V_AUX, +3VSB, +5VSB, +12VSB,
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



CPU Support List

Socket Family Number Core Frequency Cache Power Since BIOS Note
4710 Xeon 6 6520P Granite Rapids 2.4GHz 144MB 210W 1.01
4710 Xeon 6 6521P Granite Rapids 2.6GHz 144MB 225W 1.01
4710 Xeon 6 6731P Granite Rapids 2.5GHz 144MB 245W 1.01
4710 Xeon 6 6530P Granite Rapids 2.3GHz 144MB 225W 1.01
4710 Xeon 6 6736P Granite Rapids 2GHz 144MB 205W 1.01
4710 Xeon 6 6737P Granite Rapids 2.9GHz 144MB 270W 1.01
4710 Xeon 6 6767P Granite Rapids 2.4GHz 336MB 350W 1.01
4710 Xeon 6 6507P Granite Rapids 3.5GHz 48MB 150W 1.01
4710 Xeon 6 6511P Granite Rapids 2.3GHz 72MB 150W 1.01
4710 Xeon 6 6517P Granite Rapids 3.2GHz 72MB 190W 1.01
4710 Xeon 6 6740P Granite Rapids 2.1GHz 288MB 270W 1.01
4710 Xeon 6 6741P Granite Rapids 2.5GHz 288MB 300W 1.01
4710 Xeon 6 6731E Sierra Forest 2.2GHz 96MB 250W 1.01
4710 Xeon 6 6766E Sierra Forest 1.9GHz 108MB 250W 1.01
4710 Xeon 6 6710E Sierra Forest 2.4GHz 96MB 205W 1.01
4710 Xeon 6 6780E Sierra Forest 2.2GHz 108MB 330W 1.01
4710 Xeon 6 6756E Sierra Forest 1.8GHz 96MB 225W 1.01
4710 Xeon 6 6740E Sierra Forest 2.4GHz 96MB 250W 1.01
4710 Xeon 6 6747P Granite Rapids 2.7GHz 288MB 330W 1.01
4710 Xeon 6 6746E Sierra Forest 2GHz 96MB 250W 1.01
4710 Xeon 6 6730P Granite Rapids 2.5GHz 288MB 250W 1.01
4710 Xeon 6 6781P Granite Rapids 2GHz 336MB 350W 1.01
4710 Xeon 6 6760P Granite Rapids 2.2GHz 320MB 330W 1.01
4710 Xeon 6 6761P Granite Rapids 2.5GHz 336MB 350W 1.01
4710 Xeon 6 6787P Granite Rapids 2GHz 336MB 350W 1.01
4710 Xeon 6 6732P Granite Rapids 3.8GHz 144MB 350W 1.01



TPM QVL

Type Interface Pin IC Model
TPM SPI SPI 13 pin SLB9672VU20 TPM-SPI/INFINEON*
TPM SPI SPI 13 pin SLB9670VQ2.0 TPM-SPI/INFINEON*
