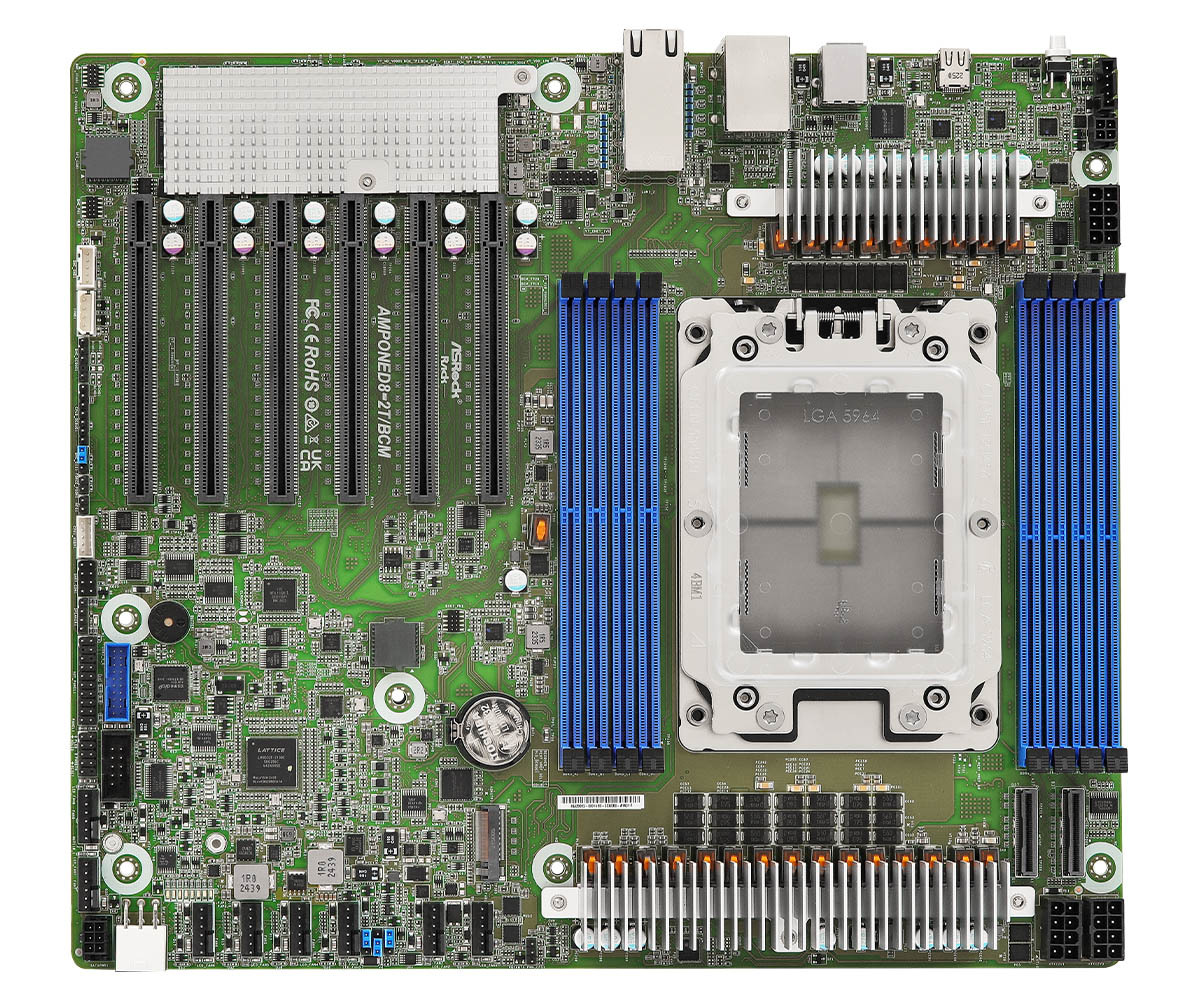

AMPONED8-2T/BCM

ModelAMPONED8-2T/BCM

CEB (12" x 10.5")

Supports AmpereOne family Processors

8 DIMM slots (1DPC); Support RDIMM, RDIMM-3DS

6 FL PCIe5.0 x16

2 MCIO (PCIe5.0 x8)

Supports 1 M.2 (PCIe5.0 x4)

2 RJ45 (10GbE) by Broadcom BCM57416

Remote Management (IPMI)

立即查詢

Specification

Physical Status
Form Factor CEB
Dimensions 12" x 10.5" (305 mm x 267 mm)
 Processor System
CPU Supports AmpereOne family Processors
Socket 1 Socket (LGA-5964)
Chipset System on Chip
 System Memory
Supported DIMM Quantity 8 DIMM slots (1DPC)
Supported Type Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM 512GB
Max. DIMM Frequency 5200MHz
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: FL PCIe5.0 x16
SLOT5: FL PCIe5.0 x16
SLOT4: FL PCIe5.0 x16
SLOT3: FL PCIe5.0 x16
SLOT2: FL PCIe5.0 x16
SLOT1: FL PCIe5.0 x16
 TPM
TPM support 1 (13-pin, SPI)
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4); support 22110/2280 form factor
Others 2 MCIO (PCIe5.0 x8)
 Ethernet
Additional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600: 1 Mini-DisplayPort 1.1a

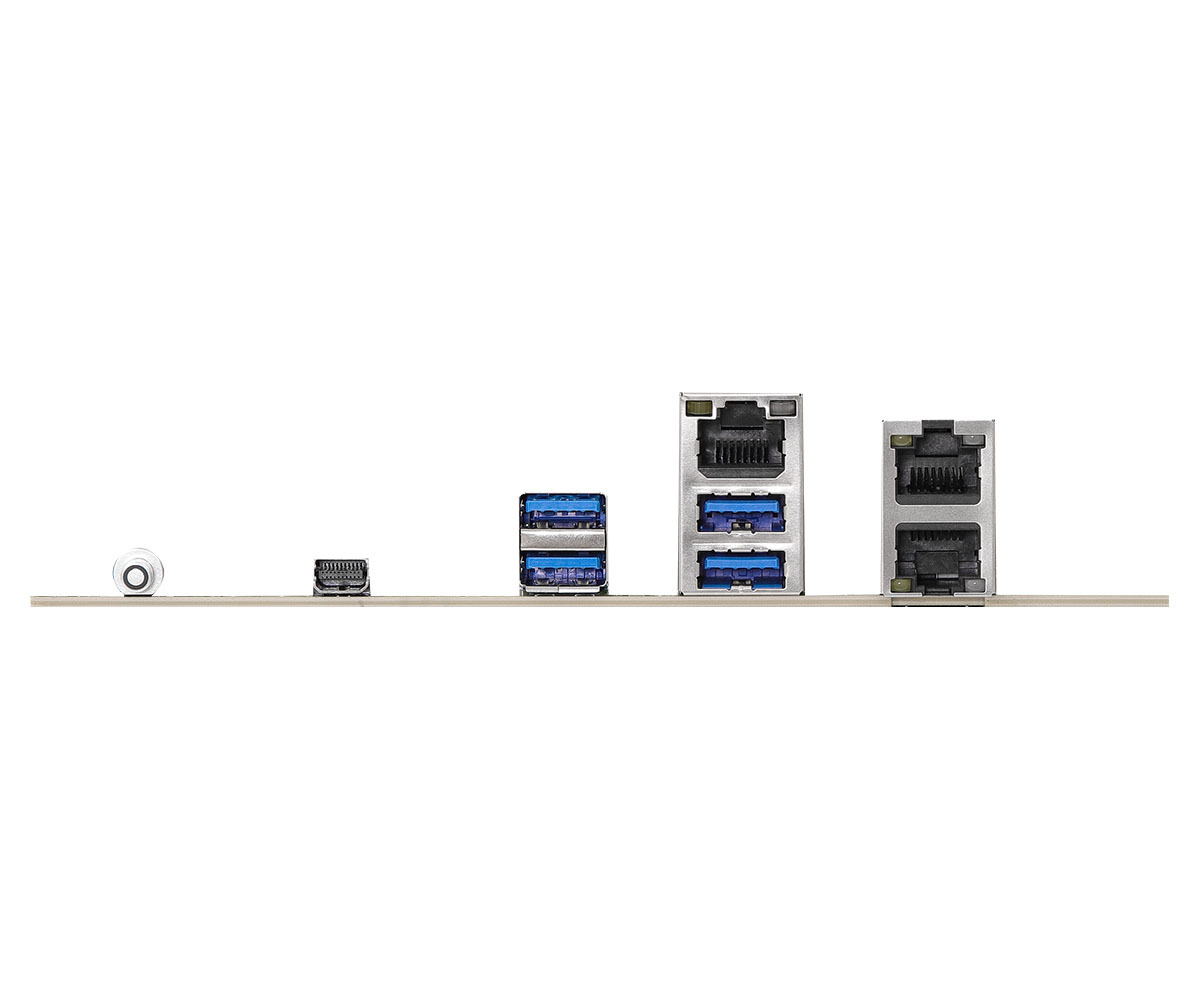

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 Mini-DisplayPort 1.1a
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE), 1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V)
Other Power Connectors 1 (6-pin) for HDD power
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1
Speaker Header 1 (4-pin)
Buzzer 1
Fan Header 8 (6-pin)
TPM Header 1 (13-pin, SPI)
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
 LED Indicators
Standby PWR LED 1
Fan Fail LED 8
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 512 Mb (64MB) SPI Flash ROM
BIOS Features ASRock Rack Instant Flash, ACPI 6.4, SMBIOS 3.6.0 and above, Plug and Play(PnP)
 Hardware Monitor
Temperature CPU, MB Temperature sensing
Fan CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage VCORE, VD2D, VSOC, AVDD, AVDDH, 3V, 5V, 12V, +BAT, 3VSB, 5VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



CPU Support List

Socket Family Model Core Frequency Power Since BIOS Note
5964 AmpereOne A96-37X AmpereOne X 3.7GHz 350W 1.20
5964 AmpereOne A144-26X AmpereOne X 2.6GHz 350W 1.20
5964 AmpereOne A144-24X AmpereOne X 2.4GHz 250W 1.20
5964 AmpereOne A128-34X AmpereOne X 3.4GHz 390W 1.20
5964 AmpereOne A144-27X AmpereOne X 2.7GHz 275W 1.20
5964 AmpereOne A192-32X AmpereOne X 3.2GHz 400W 1.20
5964 AmpereOne A192-26X AmpereOne X 2.6GHz 300W 1.20
5964 AmpereOne A160-28X AmpereOne X 2.8GHz 300W 1.20



Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR5 5600 RDIMM 96GB Micron MTC40F204WS1RC56BB1 IMCC 3IB75D8DCL Micron
DDR5 5600 RDIMM 64GB Hynix HMCG94AGBRA181N H5CG44AGBDX 018 Hynix
DDR5 5600 RDIMM 64GB Micron MTC40F2046S1RC56BD2 QLFF 4MD7DD8DKQ Micron
DDR5 5600 RDIMM 64GB Micron MTC40F2046S1RC56BD1 MMCC 3SD4DD8DKQ Micron
DDR5 5600 RDIMM 32GB Micron MTC20F1045S1RC56BD1 MMCC 3SD4DD8DKQ Micron
DDR5 5600 RDIMM 128GB Micron MTC40F2047S1RC56BB1 QLFF 4FB7DD8GDF Micron
