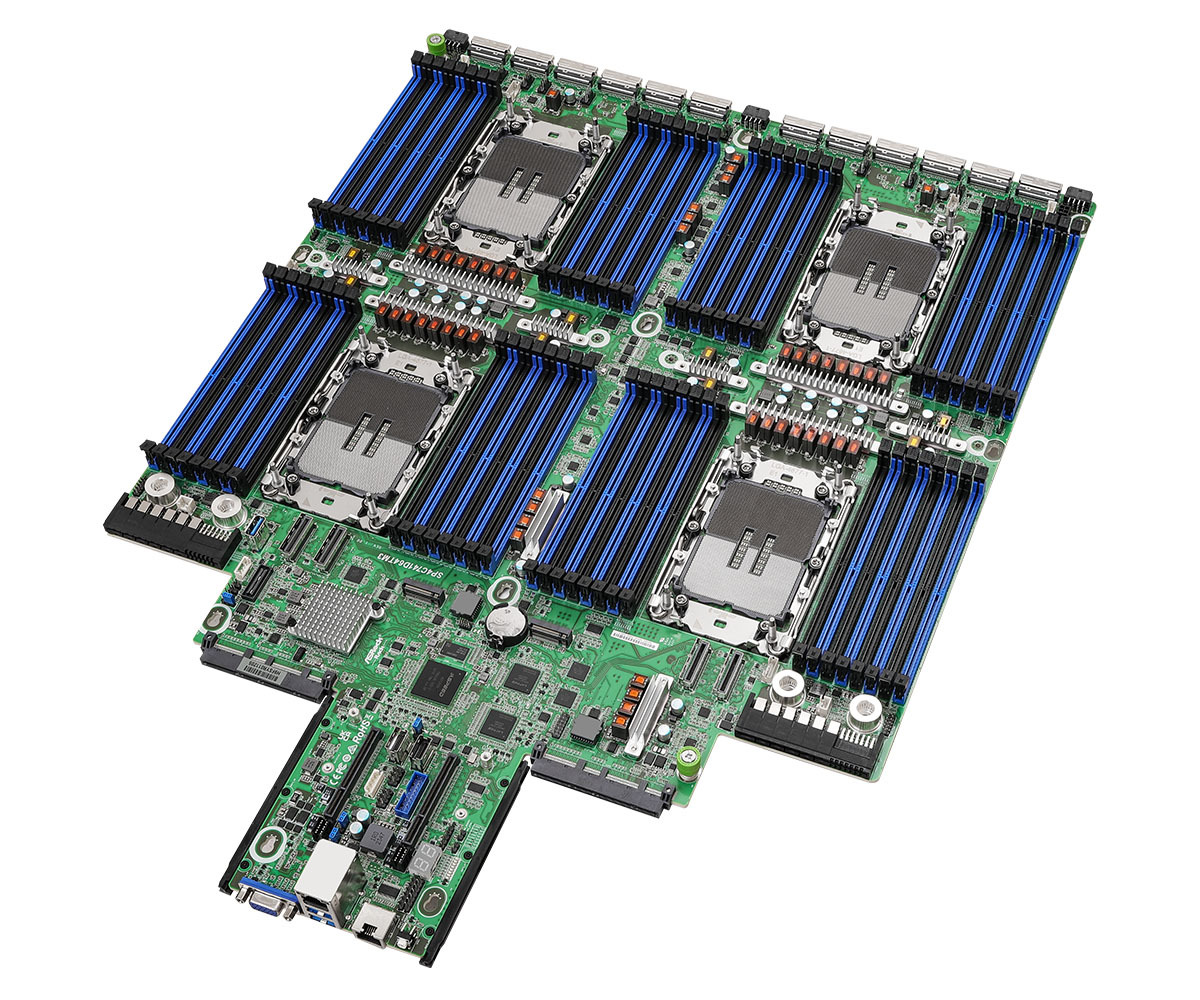

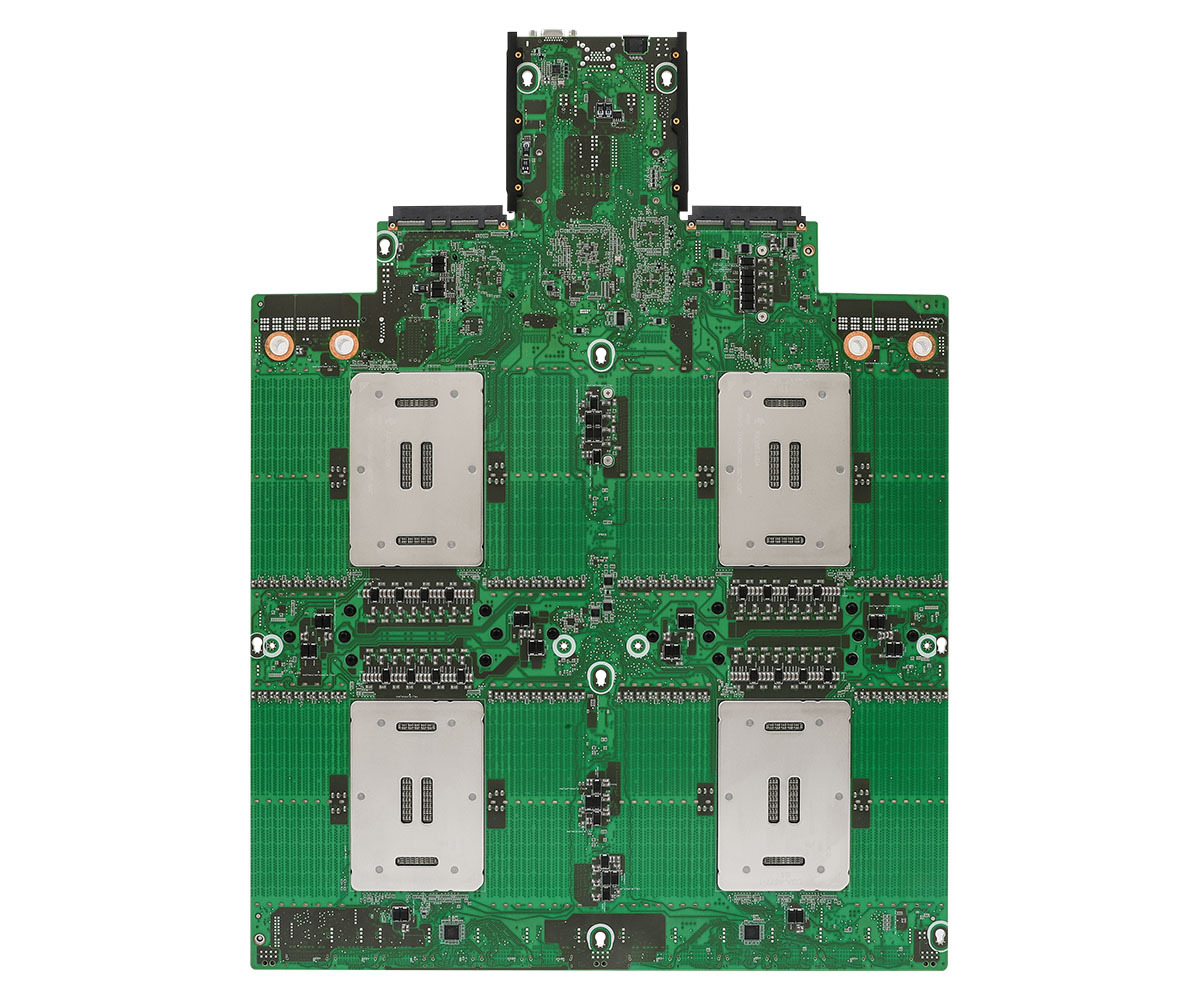

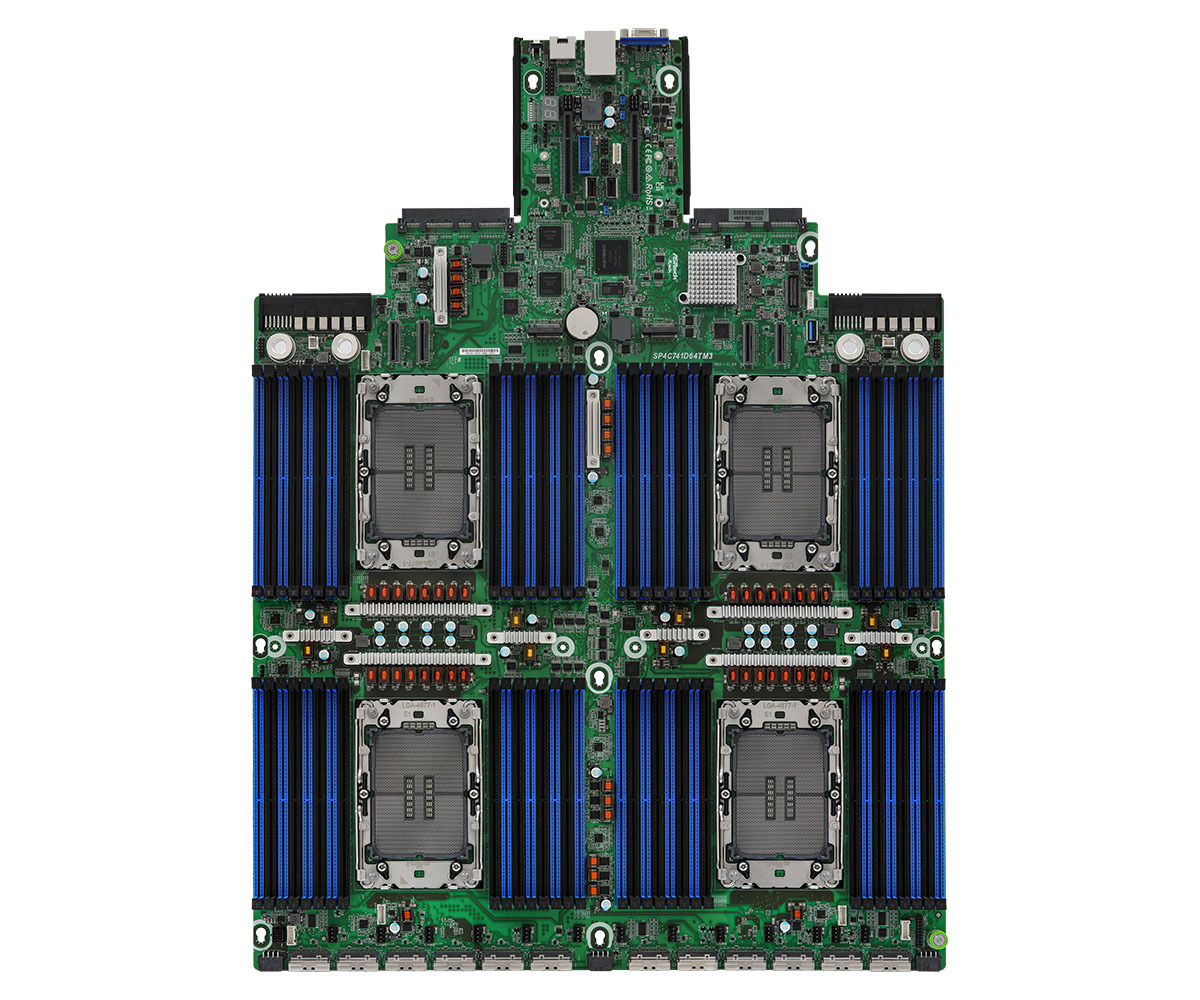

SP4C741D64TM3

ModelSP4C741D64TM3

Proprietary (17" x 22.87")

Supports 5th and 4th Gen Intel? Xeon? Scalable Processors

16+16+16+16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS

2 Slim Cool Edge (PCIe5.0 / CXL1.1 x16)

16 MCIO (PCIe5.0 x8)

2 SlimSAS (4 SATA 6Gb/s)

立即查詢

Specification

Physical Status
Form Factor Proprietary
Dimensions 17" x 22.87" (432 x 580.9 mm)
 Processor System
CPU Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
Socket Quad* Socket E (LGA 4677)

*5th Gen Intel® Xeon® Scalable Processors only supports Dual Socket
Chipset Intel® C741
 System Memory
Supported DIMM Quantity 16+16+16+16 DIMM slots (2DPC)
Supported Type 288-pin DDR5 RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 96GB
RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
Max. DIMM Frequency 5600 MT/s (1DPC) / 4400 MT/s (2DPC) on 5th Gen Intel® Xeon® Scalable Processors
4800 MT/s (1DPC) / 4400 MT/s (2DPC) on 4th Gen Intel® Xeon® Scalable Processors
*Memory speed and capacity support varies by CPU SKU
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT1: Slim Cool Edge (PCIe5.0 / CXL1.1 x16) [CPU0]
SLOT2: Slim Cool Edge (PCIe5.0 / CXL1.1 x16) [CPU1]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU0]
1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU1]
Others 2 MCIO (PCIe5.0 x8) [CPU0]
2 MCIO (PCIe5.0 x8) [CPU1]
6 MCIO (PCIe5.0 x8) [CPU2]
6 MCIO (PCIe5.0 x8) [CPU3]
2 SlimSAS (4 SATA 6Gb/s) [PCH]
 SATA/SAS Storage
PCH Built-in Storage Intel® C741 (8 SATA 6Gb/s, support RAID 0/1/5/10):
2 Slimline
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU0]
1 OCP NIC 3.0 (PCIe5.0 x16) [CPU1]
 Server Management
BMC Controller ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA)

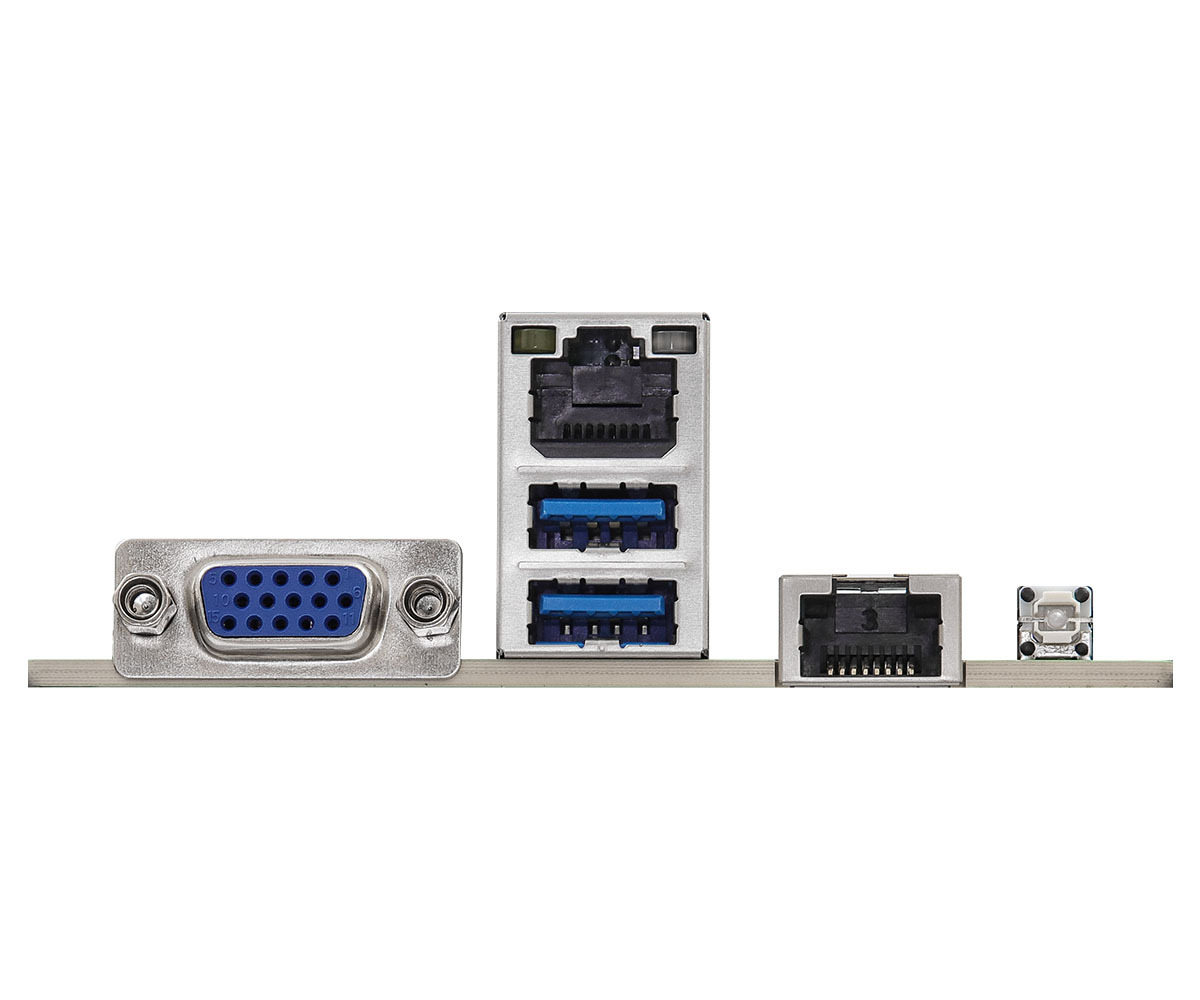

 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 ( (VGA)
Serial Port 1 RJ45 (COM)
USB 3.2 Gen1 Port 2 Type A (USB3.2 Gen1)
RJ45 1 dedicated IPMI
 Internal Connector/Headers
Power Connector 2 (CRPS IN +12V/+12VSB, max. 2700W )
Other Power Connectors 3 Micro-Hi (2x4 pin, 12V) for PCIe cards, 1 Micro-Hi (2x2 pin, 12V) for HSBP
Auxiliary Panel Header 1 (20-pin): power button, UID button, caseopen, system power LED, system fault LED, HDD activity LED, locate, SMBus
Fan Header 13 (4-pin)
TPM Header 1 (13-pin, SPI)
VROC header 1
SGPIO Header 2
HSBP 4
SMBus header 2
PMBus header 2
IPMB Header 1
Clear CMOS 1 (contact pads)
USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
Type A USB 3.2 (Gen1) Port 1 vertical Type-A (USB3.2 Gen1)
NMI Header 1
 LED Indicators
80 Debug Port LED 1
Fan Fail LED 7
BMC heartbeat LED 1
Others LED 8 CPLD debug port LED
 System BIOS
BIOS Type AMI UEFI BIOS; 512Mb SPI Flash ROM
BIOS Features Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, PCH, MB, Card Side Temperature Sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)





TPM QVL

Type Interface Pin IC Model
TPM SPI SPI 13 pin SLB9672VU20 TPM-SPI/INFINEON*
TPM SPI SPI 13 pin SLB9670VQ2.0 TPM-SPI/INFINEON*
Model SP4C741D64TM3
