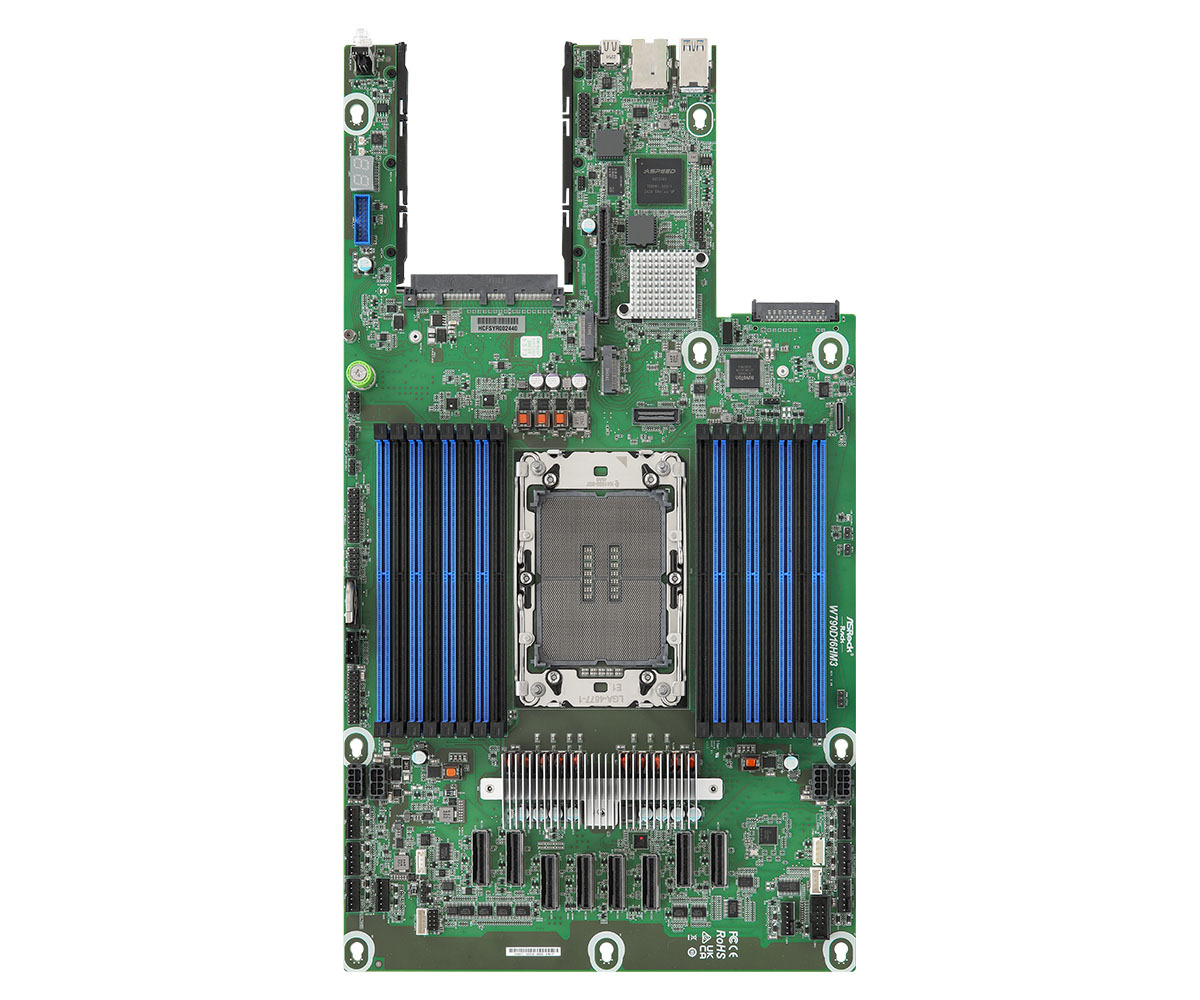

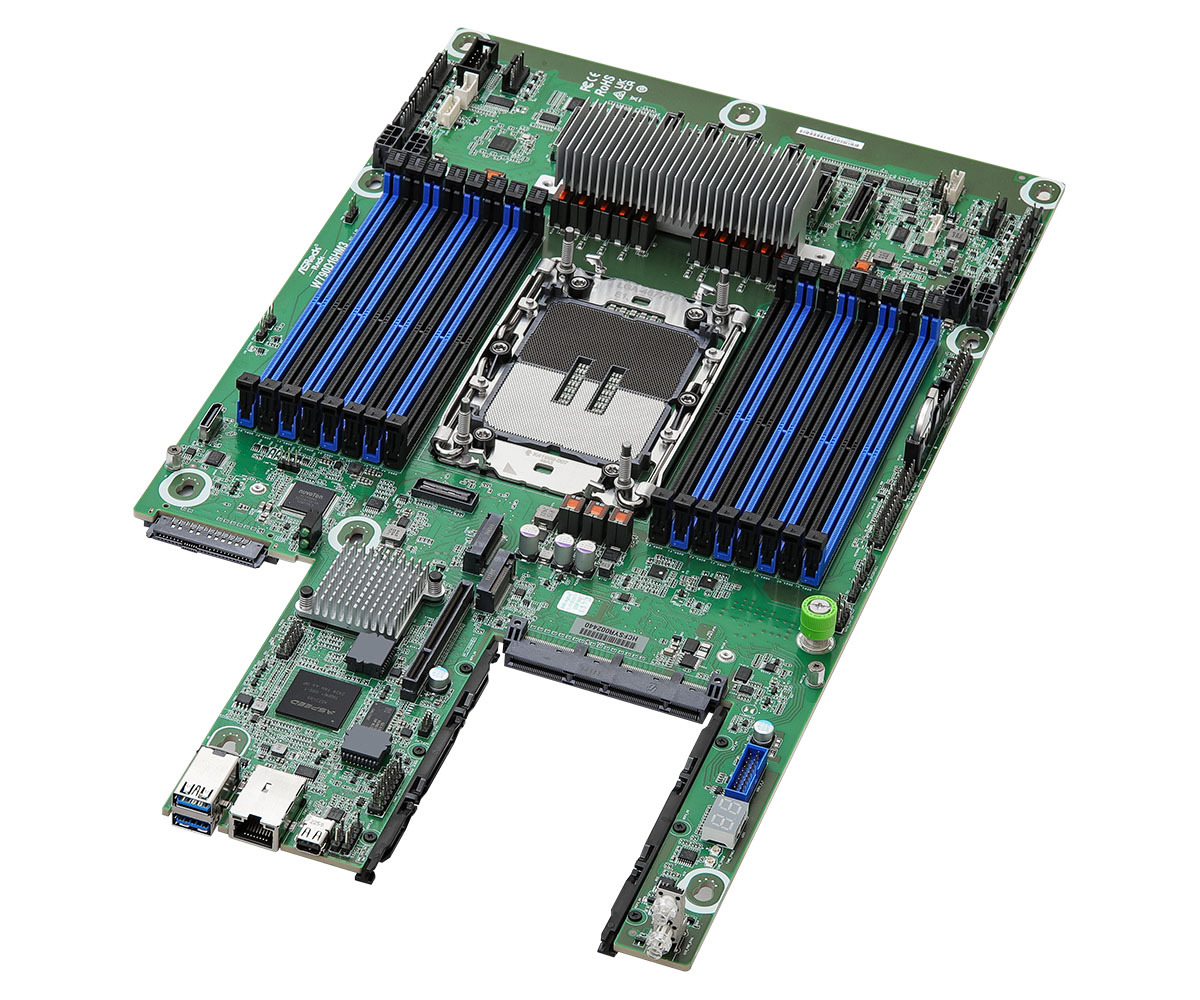

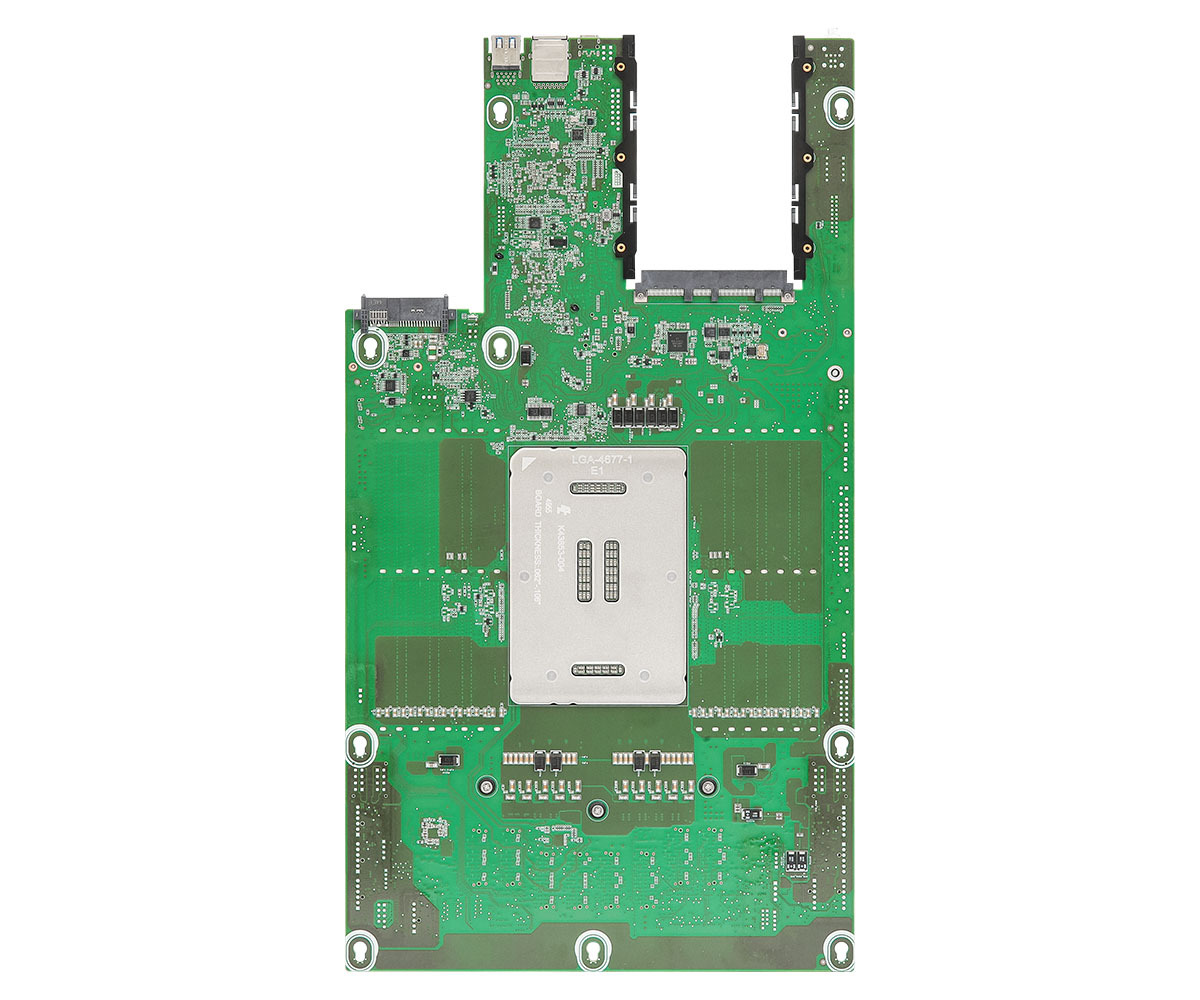

W790D16HM3

ModelW790D16HM3

TGPIO supporting precise time synchronization between devices

Half-width (9.3" x 17")

Supports Intel? Xeon? W-2500/2400 and W-3500/3400 series processors

16 DIMM slots (2DPC), supports DDR5 RDIMM/ RDIMM-3DS

1 Slim Cool Edge (PCIe5.0 x16)

立即查詢

Specification

Physical Status
Form Factor Half-Width
Dimensions 9.3" x 17" (236.22 x 431.8 mm)
 Processor System
CPU Intel® Xeon® W-2500/2400 and W-3500/3400 series processors
Socket Single Socket E (LGA 4677)
Chipset Intel® W790
 System Memory
Supported DIMM Quantity 16 DIMM slots (2DPC)
Supported Type DDR5 288-pin RDIMM/ RDIMM-3DS
Max. Capacity per DIMM RDIMM: 64GB
RDIMM-3DS: 2H- 128 GB/ 4H- 256 GB
Max. DIMM Frequency 4800MT/s (1DPC), 4400MT/s (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT1: Slim Cool Edge (PCIe5.0 x16) [CPU]
 TPM
TPM support 1 (13-pin, SPI)
 Other PCIe Expansion Connectors
M.2 slot 2 M-key (PCIe4.0 x4), supports 22110/2280 form factor [PCH]
Others 1 MCIO (PCIe5.0 x4) [CPU]
5 MCIO (PCIe5.0 x8) [CPU]
4 MCIO* (PCIe5.0 x8) [CPU]
*Only available when used with Intel® Xeon® W-3500/3400 series processors
OCuLink 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
 SATA/SAS Storage
PCH Built-in Storage Intel® W790 (Up to 8 SATA 6Gb/s; RAID 0/1/5/10):
2 OCuLink for 8 SATA
 Ethernet
OCP slot 1 OCP NIC 3.0 (PCIe5.0 x16) [CPU]
 Server Management
BMC Controller ASPEED AST2600: iKVM, vMedia support
IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
 Graphics
Controller ASPEED AST2600:
1 Mini-DisplayPort (VGA), 1 (15-pin) header

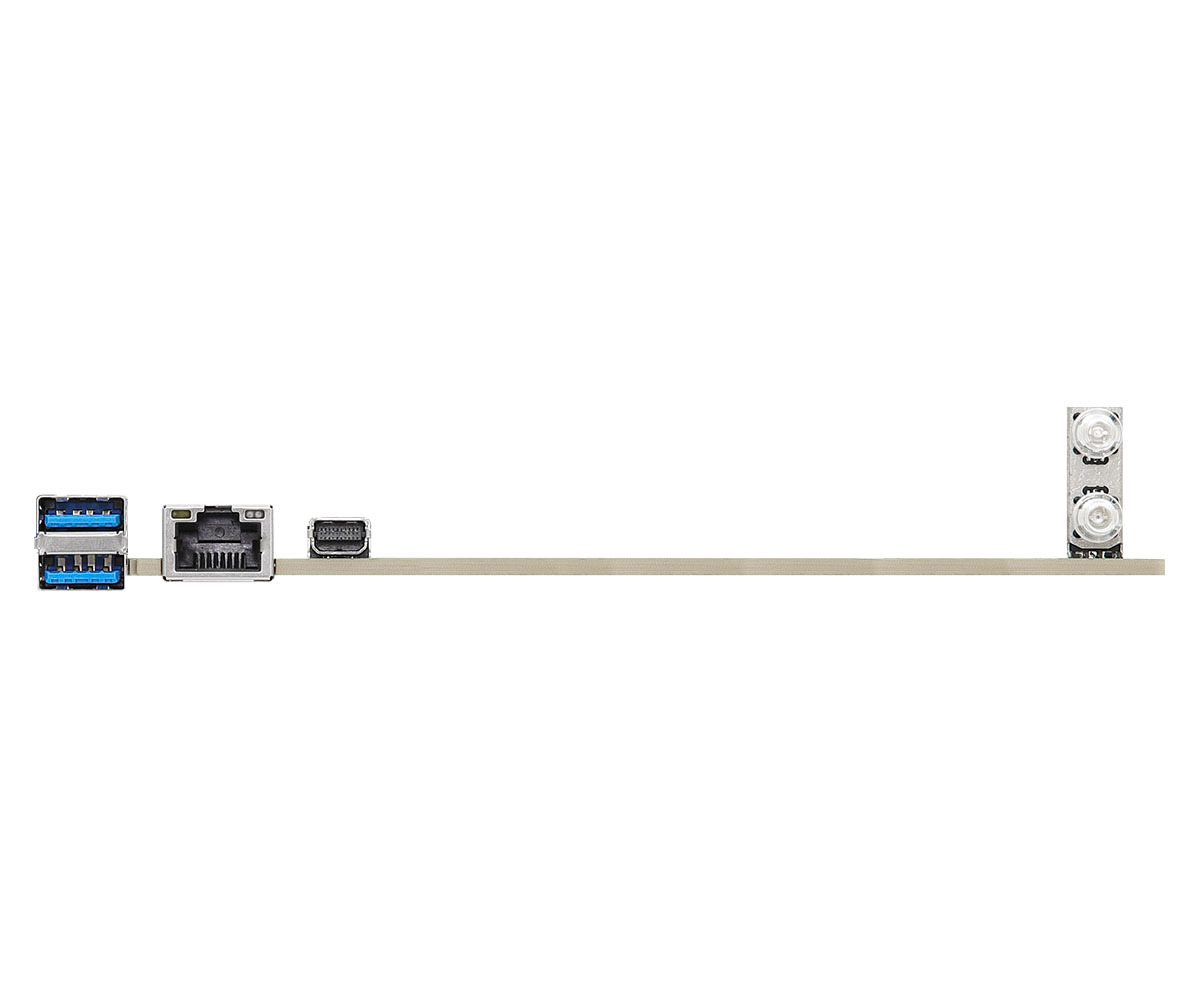

 Rear I/O
UID Button/LED 1 UID button w/ LED
Other Button/LED 1 PWR button w/LED
VGA Port 1 Mini-DisplayPort (VGA)
USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
RJ45 1 dedicated IPMI
 Internal Connector/Headers
Power Connector 4 (8-pin, Micro-Hi 12V), 1 (19-pin, CM Board Standby Power 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, locate, SMBus
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header 1 (9-pin)
VGA header 1 (15-pin)
Speaker Header 1 (4-pin)
Fan Header 8 (6-pin)
Thermal Sensor Header 1
TPM Header 1 (13-pin, SPI)
VROC header 1
SGPIO Header 1
HSBP 1
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Others 1 U.2 connector, 1 PECI header, 2 (1-pin, TGPIO header)
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
NMI Header 1
 LED Indicators
Standby PWR LED 1 (5VSB)
Fan Fail LED 8
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI 256Mb SPI Flash ROM
BIOS Features Plug and Play, ACPI 5.0 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash
 Hardware Monitor
Temperature CPU, MB, Card side, TR1 Temperature sensing
Fan Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)



Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR5 5600 RDIMM 64GB Samsung M321R8GA0PB0-CWMXH K4RAH046VP BCWM Sec
DDR5 4800 RDIMM 96GB Samsung M321RYGA0BB0-CQKZJ K4RHE046VB BCQK Sec
DDR5 4800 RDIMM 128GB SMART SRAG8RD5846-SB K4RBH046VB 2CWK Sec



TPM QVL

Type Interface Pin IC Model
TPM SPI SPI 13 pin SLB9672VU20 TPM-SPI/INFINEON*
TPM SPI SPI 13 pin SLB9670VQ2.0 TPM-SPI/INFINEON*
